Description reviews

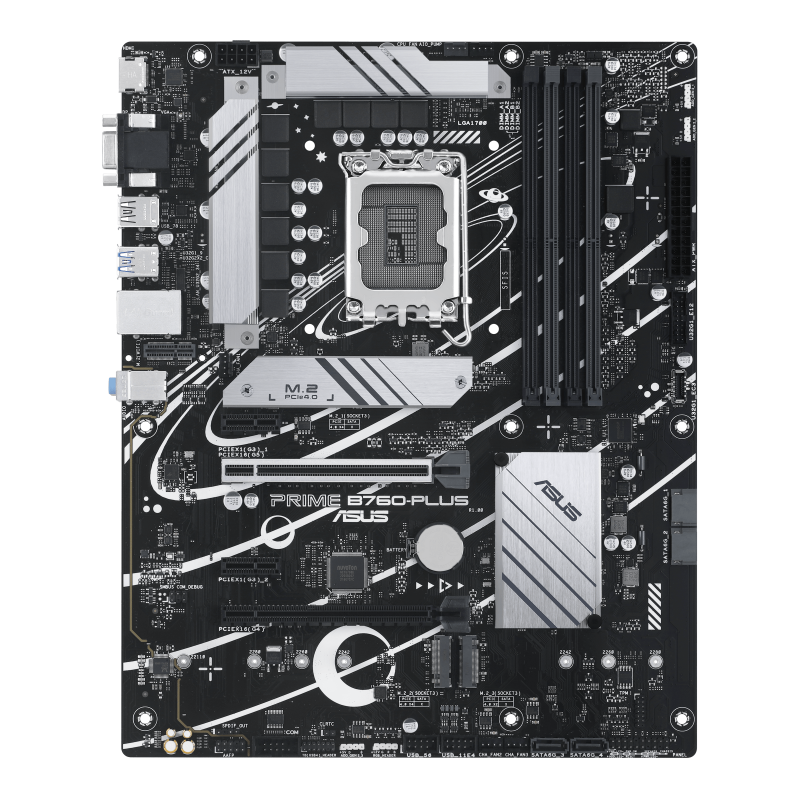

Model

PRIME B760-PLUS

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI™ 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

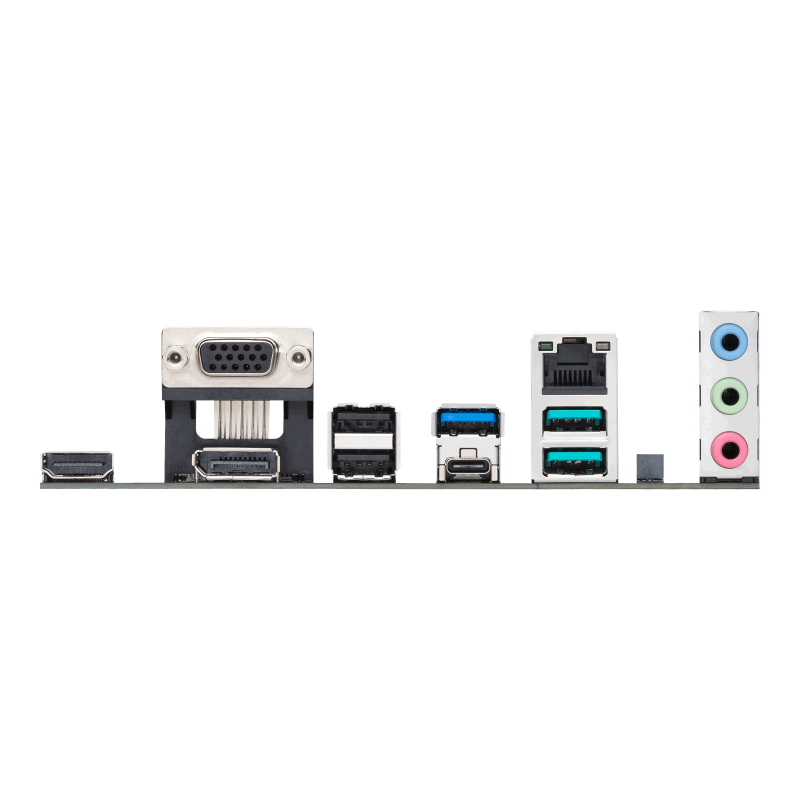

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

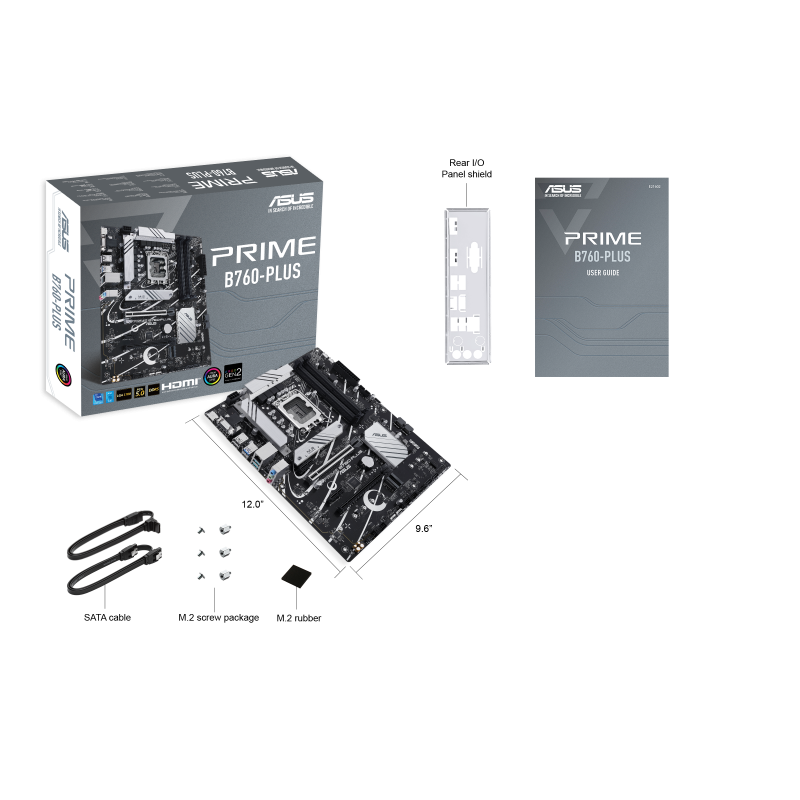

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Download

There have been no reviews for this product yet.

ASUS Prime B760-PLUS

(NB)NORTH BAYOU F80 MONITOR DESK MOUNT STAND FULL MOTION FOR 17-30-Inch MONITORS

SUNLUX XL-3610 2D Barcode Scanner (Unique appearance, stylish shape, modern design 0.3 million global shutter camera, fast reading speed 60fps/s Fast reading on all 1D/2D barcode on paper and screen Q

Razer Blackshark V2 X Multi-Platform Wired esports Headset 7.1 (copy one)

Asus Vivobook Go 15 E1504FA AMD® Ryzen™ 5-7520U, 8GB RAM LPDDR5, 512GB NVMe® SSD, AMD® Radeo™ 610M, 15.6 IPS-Level 1920 x 1080 (FHD), Windows 11 Pro - Black

Crucial 16GB DDR5 4800Mhz CL40 1.1V SODIMM RAM - CT16G48C40US5

Asus ExpertBook B1500C Intel® 11Th Gen™ Core I7-1165G7, 16GB RAM DDR4, 1TB NVMe® SSD, Intel® Iris® Xe Graphics, 15.6 TN 1920 x 1020 (FHD)

Related products

Asus TUF GAMING Z690-Plus D4 Intel® Z690 LGA 1700 (Intel® 12Th Gen) ATX Gaming Motherboard, 15 DrMOS Power stages, PCIe® 5.0, DDR4 Memory, Four M.2 Slots, Wi-Fi 6 and Intel® 2.5 Gb Ethernet, HDMI®, DP

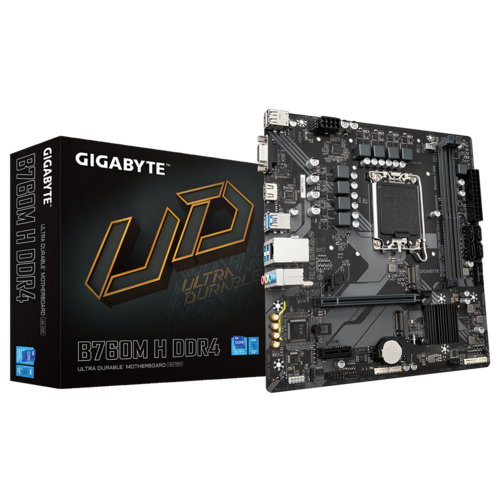

GIGABYTE B760M H DDR4 Intel® B760 LGA 1700 (14Th, 13Th & 12Th Gen), mATX Motherboard, 6 + 1 + 1 Phases Hybrid Digital VRM, PCI-E 4.0, Gb LAN, 2 RAM DIMMS, 2 M.2 Slots

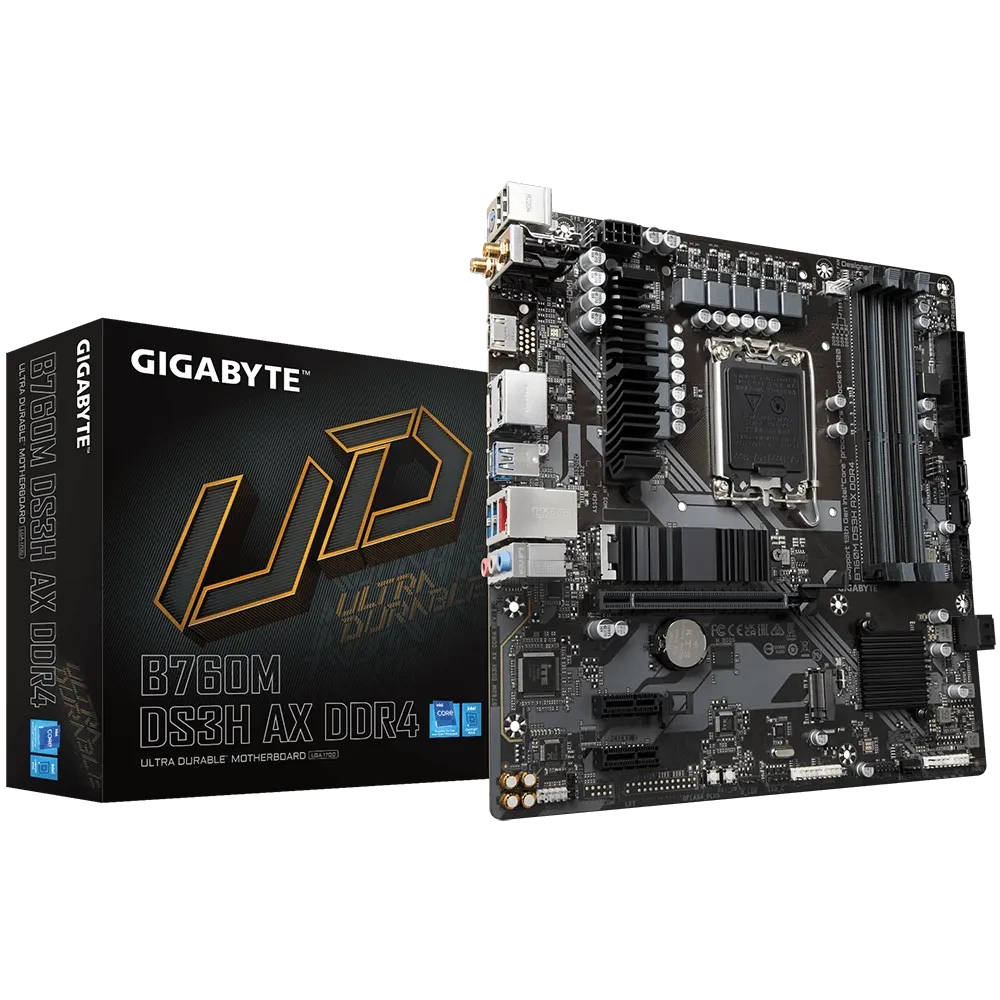

GIGABYTE B760M DS3H AX DDR4 Intel® B760 LGA 1700 (14Th, 13Th & 12Th Gen), mATX Motherboard, 6 + 2 + 1 Phases Hybrid Digital VRM, PCI-E 4.0, Wi-Fi 6E Ready, 2.5Gb LAN, 4 RAM DIMMS, 2 M.2 Slots
