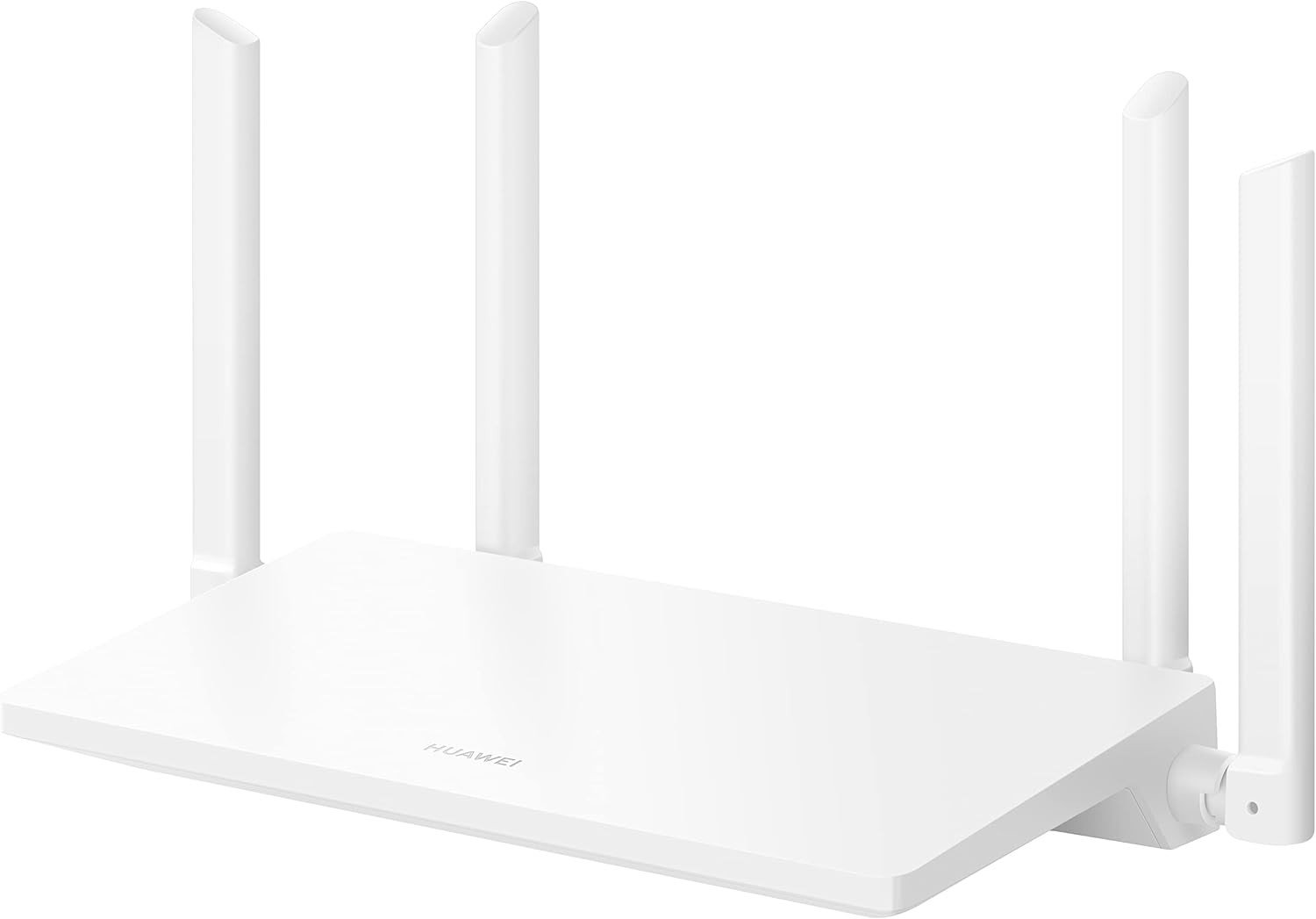

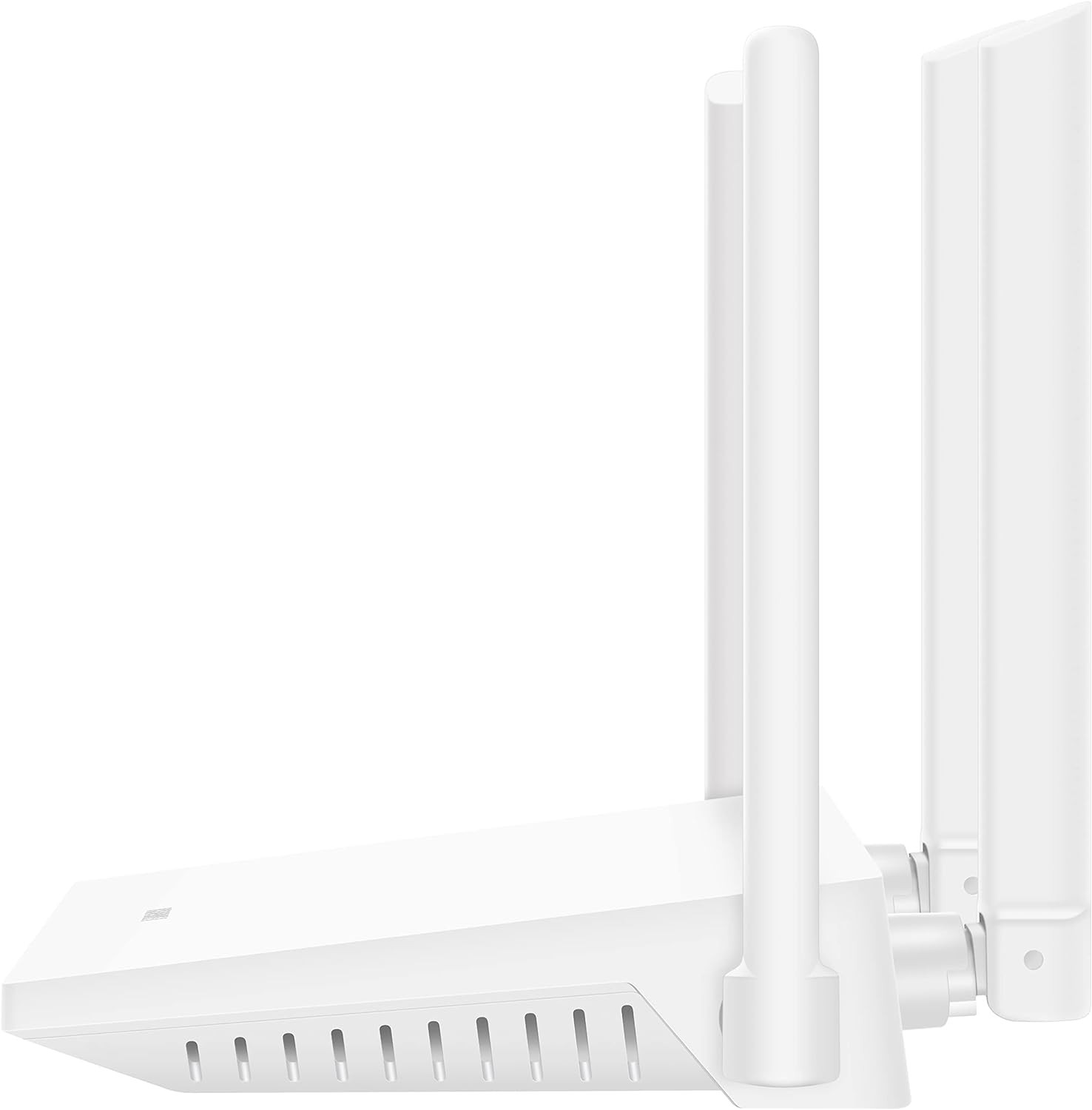

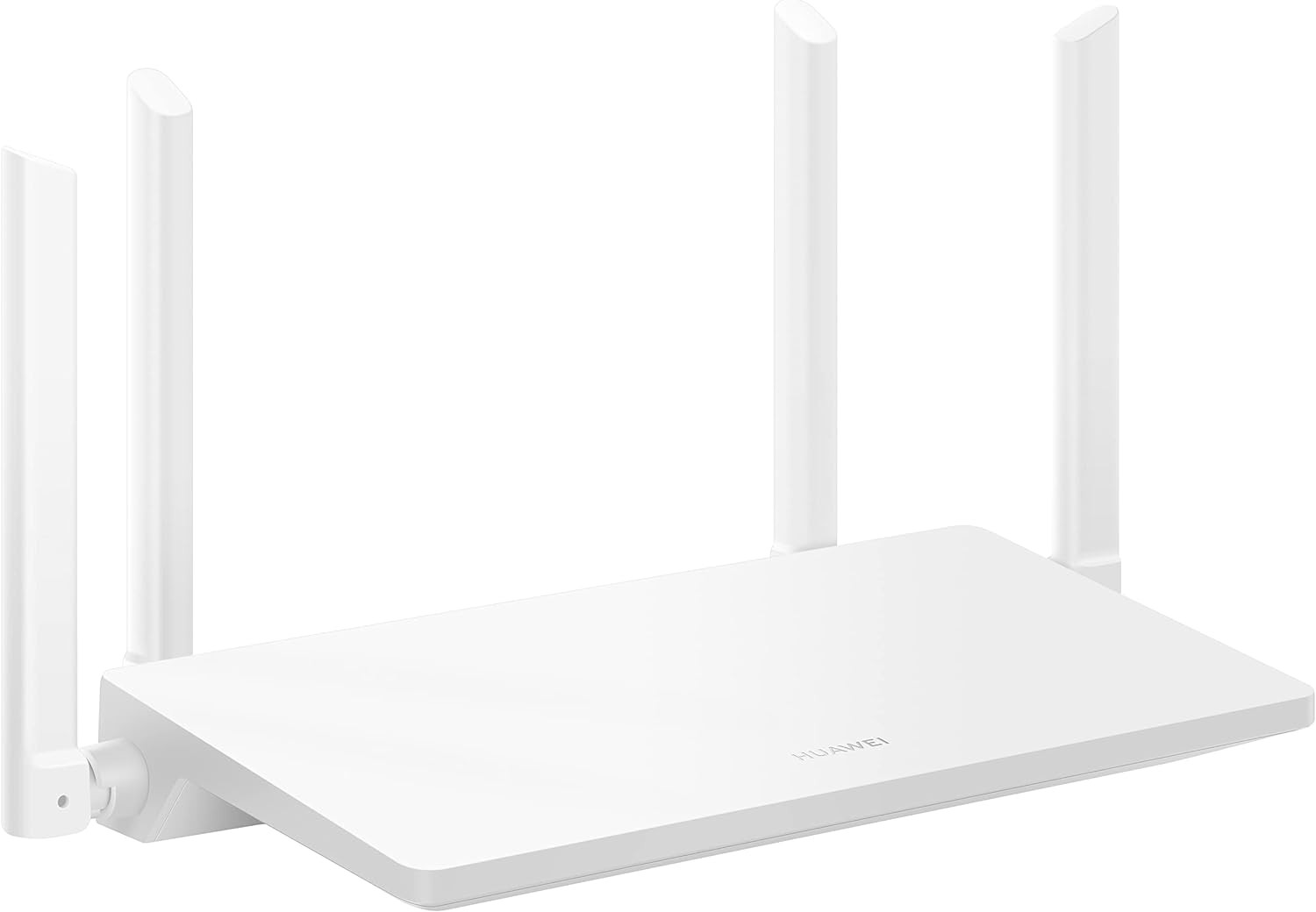

Huawei Wifi Ax2 (1-Pack) 1500Mbps Wireless Router, White, Ws7001-20

Huawei AX2 Pro WiFi 6 Router Specification

Dimensions and weight

Length

205 mm

Width

120 mm

Thickness

39 mm

Note: The actual size may vary depending on the configuration, manufacturing process, and measurement method.

Weight

Host weight: about 240 g

Note: The actual weight may vary depending on the configuration, manufacturing process, and measurement method.

WLAN specifications

Transmission standard

Support IEEE 802.11b/g/n

Support IEEE 802.11ax/ac/n/a

Support 2x2 MIMO

Wireless rate

2.4 GHz theoretical negotiation rate is 300 Mbps

5 GHz theoretically negotiated rate is 1201 Mbps

Total theoretical negotiation rate 1501 Mbps

Wireless frequency band

2.4 GHz & 5 GHz, support WiFi 5 GHz optimization

Antenna

WLAN antenna type

External antenna

Storage

128 MB RAM + 128 MB ROM

Note: The usable memory capacity is less than this value because the software occupies part of the space.

Network port

WAN and LAN interface self-adaptation: the home network cable can be plugged into any network port, and all users can access the Internet.

Provide 4 Ethernet interfaces with 10/100/1000 Mbps adaptive rate.

Button

Huawei H (or Hi) button

Support Huawei H button one-click access to HiLink smart devices, WPS wireless devices

Reset button

Independent Reset reset hole

LED indicator

"H" indicator light: one light position, two colors (red, green)

Power consumption

Power consumption

Product power consumption: <12 W

AC/DC power supply

Product power supply: 12V DC, 1A

Input voltage: 200-240V AC

Input voltage frequency: 50-60 Hz

Software function

APP: Huawei Smart Life APP

Support Huawei HiLink and 802.11kv protocol, PPPoE/DHCP/static IP/Bridge WAN Internet access, blind plug-in of the network port, intelligent acceleration, remote control, Wi-Fi timer switch, guest Wi-Fi, Wi-Fi anti-brute force cracking, WPA3 , MAC address filtering, children's Internet protection, VPN penetration, DMZ/virtual server, etc.

Safety

Firewall security management

HUAWEI HomeSecTM security protection

Support Wi-Fi anti-brute force cracking, anti-scratching network, anti-camera hijacking

Child online protection

Support time limit, payment limit, game limit, video limit, social limit, bad website blocking, etc., to protect children's healthy surfing.

Surroundings

Temperature

Working temperature

Working temperature: 0℃～40℃ (32℉～104℉)

Product storage temperature

Storage temperature: -40℃～70℃ (-40℉～158℉)

Humidity

5%～95% (non-condensing)

Packing list

Power adapter: 1

User Manual: 1 copy

Router: 1
