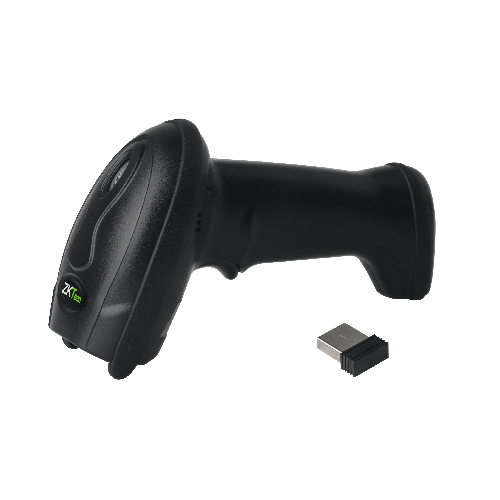

ZKTeco 2D QRcode Scanner Wireless or USB Cable ) – ZKB202

GENERAL

Dimension

Scanner: 175*72*100 (mm) (L*W*H)

Scanner Weight

160g (Exclude communication cable)

Material

ABS+PC, black

Interface on Scanner

USB (Type B)

Interface Support on Server

Standard USB (Optional RS232)

SPECIFICATION

Communication Methods

USB Cable or 2.4G Wireless (Driver free)

Image Sensor

CMOS

Resolution

640 * 480, 0.3 Mega Pixels

Analytical Ability

≥4mil/0.1mm (@PCS90%, CODE 39)

Decoding Depth of Field

0~15cm (According to code type)

Decoding Speed

25 cm/s

Scanning Mode

Manual Press or Auto-sensing

Reminding Method

LED light and buzzer

Field of View

Horizontal 40° x Vertical 30°

Scanning Angle

Roll: ±360°; Pitch: ±60°; Yaw: ±55° (CODE 39, 10mil/0.25mm, PCS90%)

Print Contrast Signal

≥25%

Ambient Light Intensity

Dark envionment or indoor natural light

OS Supports

Windows, Mac OS, IOS, Linux, Unix, Android

Other

Support Bluetooth 4.2

WIRELESS SPECIFICATIONS

Wireless Mode

Synchronous Mode, Storage Mode

Wireless Standard

2.4GHz (ISM Frequency Channel)

Wireless Communication Distance

150 meters Max.

Storage Capability

16MB (More than 100,000 Product Code)

Battery

2000 mAh (Lithium Ion Battery), Continuous Using Time: ≥12 hours

Charging Current

5V@1000mA

Charging Time

About 5 hours

Standby Time

≥4 weeks

Working Condition

Temperature 0°C to 50°C

Srotage Condition

Temperature -30°C to 60°C

Protection Level

IP54

STANDARD PACKAGE DETAILS

Dimension

195*105*80 (mm) (L*W*H)

Weight

410g

Packing List

1*Scanner, 1*USB Communication Cable(1.5m), 1*USB Signal Receiver, 1*User Manual
