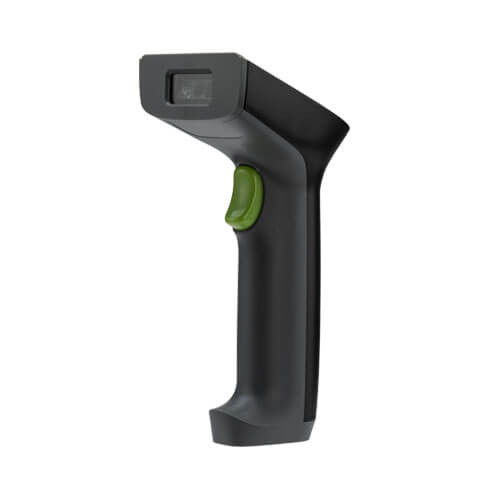

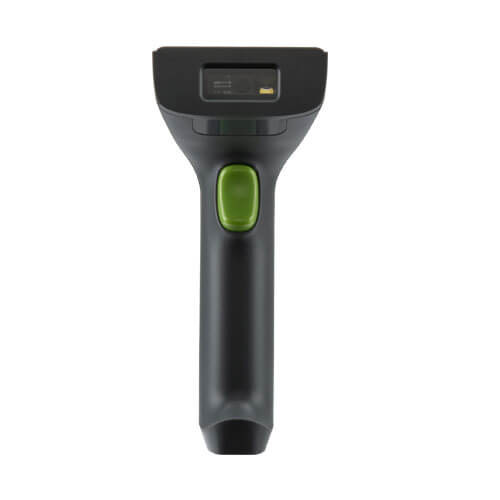

ZKTeco ZKB202 2D Wireless Barcode Scanner

Features ·Compatible with various LCD and OLED mobile phone screen codes and paper product codes; ·Quickly read all common 1D/2D barcodes; ·Ultra-high decoding performance, support barcode reading of high density, dirty, damaged and complete information; · Intelligent white auxiliary light illumination, soft red aiming indicator, bring comfortable scanning experience.

Specifications

Physical Parameters Dimensions(L*W*H) 167.3*70.5*81.5 (mm) Weight 170g Voltage & Current 5 VDC Operating: 190mA (Standby: 60mA) Color Black and Gray (White, optional) Support Host Interface 2.4GHz (2.4GHz+Bluetooth, optional) User Indicators Decode LED Indicator; Beeper (adjustable tone and volume) Performance Parameters Scan Mode Manual Reading Mode Light Source Aiming Pattern: 650nm true red LED Illumination White LED Scan Speed 10cm/second Field of View Horizontal: 41°; Vertical: 31° Image Sensor 640*480 pixels Minimum Print Contrast 25% Roll Tolerance 0°-360° Pitch Tolerance ±60° Skew Tolerance ±55° Minimum Element Resolution Code 39: 4mil; Code 128: 4 mil; Data Matrix: 6 mil; QR Code: 6.7mil Decode Capability 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code93, Code 11,  Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7) 2D: QR Code,  Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc. Wireless Connectivity Radio Range 2.4GHz: 60m (Bluetooth: 15m) Wireless Communication Mode Synchronous Mode; Storage Mode Battery Type 18650 Li-ion Battery Battery Capacity 2000 mAh Operating Time Per Full Charge ≥12 Hours Standby Time Per Full Charge ≥4 Weeks Charge Time(from Empty)/Standard USB 5 Hours Environmental Parameters Operating Temperature-20°C to 50°C Storage Temperature-40°C to 70°C Humidity 5% to 95% relative humidity, non-condensing Electrostatic Discharge (ESD) ±2KV Direct; ±8KV Air Ambient Light Immunity 10000 lux Max Decode Ranges Symbology / Resolution Near/Far Code 39: 4 mil 4 cm to 10 cm Code 39: 5 mil 4 cm to 13 cm Code 39: 13 mil 4 cm to 25 cm Code 39: 20 mil 6 cm to 30 cm EAN-13: 13 mil 3 cm to 25 cm UPC-A: 13 mil 3 cm to 25 cm QR Code: 20mil 5 cm to 20 cm PDF417: 13mil 5 cm to 20 cm
